PRODUCTS
- VoIP SOLUTIONS
|
|
| General
Specifications |
 |
Enlarged
FLASH, RAM and DSP memory as well as more powerful
processor and enhanced features such as IP, SRTP,
HTTPS and more |
|
Small
foot print, slick plastic enclosure |
|
Outdoor
protection and surge immunity according to TNV-3,
as standard ordering option |
|
Port
to Port Fall Back on the mixed FXS/FXO product variants |
|
Backwards
compatibility with the MP-1XX (H.323, MGCP, SIP,
provisioning, etc.) |
|
Analog
front capabilities (CID, long Haul, MWI, Metering
tones, etc.) as the MP-10X |
|
Designed
for improved homologation coverage for FXO variant |
|
| Features |
|
spans
2 - 24 analog ports |
|
IP
network 10/100 Base-T Ethernet |
|
MGCP,
H.248, H.323, SIP |
|
Web
MGMT for easy config and install |
|
Selectable,
multiple LBR coders per channel |
|
Supports
FXS/FXO |
|
Echo
cancellor, jitter, buffer, VAD adn CNG |
|
T.38
compliant |
|
Internal power supply |
| |
|
|
|
|
|
| Overview |
|
Based
on self-copyright IC. |
|
Ethernet
port 10/100M half/full duplex self adaptable, supporting
VLAN |
|
RJ45
interface supports AUTO-MDIX |
|
Provides
2 clock types: E1 master clock, E1 line clock |
|
Provide
LAN auto reset function, run more stably |
|
Has
the function of pseudo-random code testing, convenient
for opening of the circuit, and can be used as an
error code instrument |
|

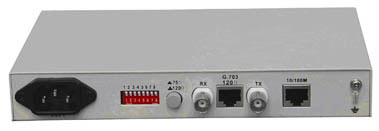

Have
three LoopBack Modes: E1 interface LoopBack (ANA)
LAN interface LoopBack (DIG) command the remote
LAN interface LoopBack (REM) 75-ohm dual coax and
120-ohm twisted-pair G.703 connections provided,
only push the switch at the back panel of the device
to adjust it |
|
With
abundant presentation function of Ethernet data,
can detect real-time data communication status |
|
Can
realize SNMP management |
|
| Specifications |
| E1
Interface |
| Line
Rate |
2.048Mbps±50ppm |
| Line
Code |
HDB3 |
| Interface
Standard |
ITU-T
G.703 |
| E1
Impedance |
75O(unbalance)
and 120O(balance) |
| Connections |
dual
coax and 120-ohm twisted-pair (RJ45) |
| Jitter
tolerance |
finer
than G.742 and G.823 |
| 10/100Base-T
Interface |
Rate
|
10/100M,
full/duplex auto-negotiation |
| Protocol |
Support
IEEE 802.3, IEEE 802.1Q (VLAN) |
| MAC
Address Entiries |
4096
Entiries |
| Total
Memory Sizes |
64MBits
SDRAM |
| Physical
interface |
RJ45,
support AUTO-MDIX |
| |
|
|
|
|
